Results:

: DF2B7AFU,H3F

Brand:Toshiba Semiconductor and Storage

Package:SC-76, SOD-323

Category:TVS - Diodes

Description:TVS DIODE 5.5VWM 20VC USC

Price:$0.22

Availability:3,609

RFQ

Datasheet

: ESD5Z5.0T5G

Brand:onsemi

Package:SC-79, SOD-523

Category:TVS - Diodes

Description:TVS DIODE 5VWM 18.6VC SOD523

Price:$0.26

Availability:2,890

RFQ

Datasheet

: MMBZ27VCLT1G

Brand:onsemi

Package:TO-236-3, SC-59, SOT-23-3

Category:TVS - Diodes

Description:TVS DIODE 22VWM 38VC SOT23-3

Price:$0.25

Availability:3,625

RFQ

Datasheet

: MMBZ33VALT1G

Brand:onsemi

Package:TO-236-3, SC-59, SOT-23-3

Category:TVS - Diodes

Description:TVS DIODE 26VWM 46VC SOT23-3

Price:$0.25

Availability:3,455

RFQ

Datasheet

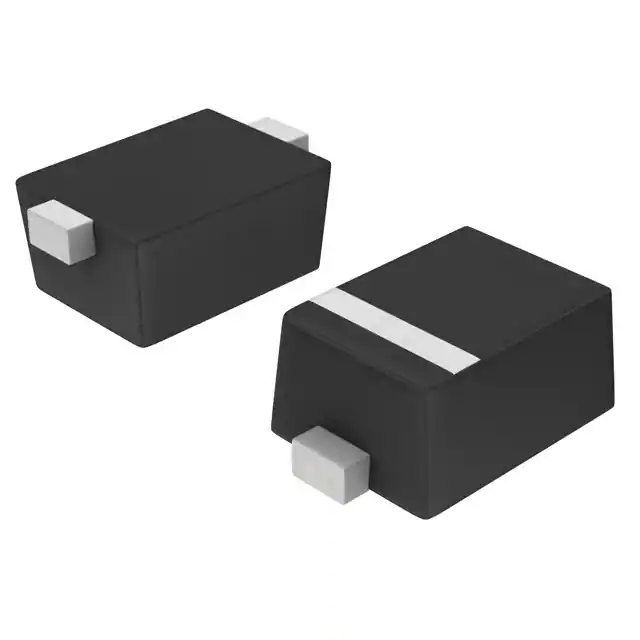

: ESD9X12ST5G

Brand:onsemi

Package:SOD-923

Category:TVS - Diodes

Description:TVS DIODE 12VWM 23.7VC SOD923

Price:$0.30

Availability:1,045,057

RFQ

Datasheet

: MMBZ9V1ALT1G

Brand:onsemi

Package:TO-236-3, SC-59, SOT-23-3

Category:TVS - Diodes

Description:TVS DIODE 6VWM 14VC SOT23-3

Price:$0.27

Availability:2,400

RFQ

Datasheet

: PESD5V0V1BL,315

Brand:Nexperia USA Inc.

Package:SOD-882

Category:TVS - Diodes

Description:TVS DIODE 5VWM 12.5VC DFN1006-2

Price:$0.37

Availability:3,635

RFQ

Datasheet

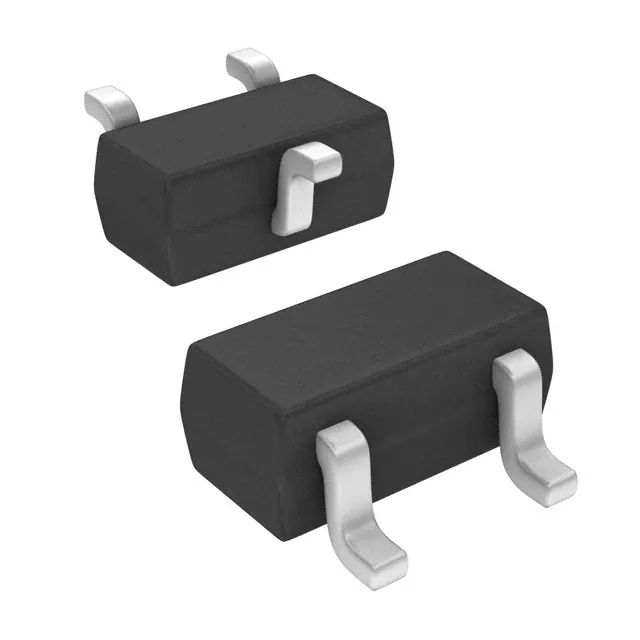

: DF3D6.8MS,LF

Brand:Toshiba Semiconductor and Storage

Package:SC-75, SOT-416

Category:TVS - Diodes

Description:TVS DIODE 5VWM 11VC SSM

Price:$0.28

Availability:3,769

RFQ

Datasheet

: CEZ12V,L3F

Brand:Toshiba Semiconductor and Storage

Package:SC-79, SOD-523

Category:TVS - Diodes

Description:TVS DIODE 12VWM 26VC ESC

Price:$0.32

Availability:2,974

RFQ

Datasheet

: ESD5Z6.0T1G

Brand:onsemi

Package:SC-79, SOD-523

Category:TVS - Diodes

Description:TVS DIODE 6VWM 20.5VC SOD523

Price:$0.28

Availability:3,967

RFQ

Datasheet

: ESD5Z12T1G

Brand:onsemi

Package:SC-79, SOD-523

Category:TVS - Diodes

Description:TVS DIODE 12VWM 25VC SOD523

Price:$0.28

Availability:2,914

RFQ

Datasheet

: PESD5Z6.0,115

Brand:Nexperia USA Inc.

Package:SC-79, SOD-523

Category:TVS - Diodes

Description:TVS DIODE 6VWM 18VC SOD523

Price:$0.31

Availability:2,666

RFQ

Datasheet

: PESD5Z7.0,115

Brand:Nexperia USA Inc.

Package:SC-79, SOD-523

Category:TVS - Diodes

Description:TVS DIODE 7VWM 19VC SOD523

Price:$0.31

Availability:2,964

RFQ

Datasheet

: PESD5Z5.0,115

Brand:Nexperia USA Inc.

Package:SC-79, SOD-523

Category:TVS - Diodes

Description:TVS DIODE 5VWM 18VC SOD523

Price:$0.31

Availability:2,588

RFQ

Datasheet

: PESD5Z12,115

Brand:Nexperia USA Inc.

Package:SC-79, SOD-523

Category:TVS - Diodes

Description:TVS DIODE 12VWM 35VC SOD523

Price:$0.31

Availability:2,943

RFQ

Datasheet

: PJSD05W_R1_00001

Brand:Panjit International Inc.

Package:SC-90, SOD-323F

Category:TVS - Diodes

Description:SOD-323, TVS/ESD

Price:$0.35

Availability:3,622

RFQ

Datasheet

: DF3A6.8FU,LF

Brand:Toshiba Semiconductor and Storage

Package:SC-70, SOT-323

Category:TVS - Diodes

Description:TVS DIODE USM

Price:$0.31

Availability:2,718

RFQ

Datasheet

: SZMMBZ5V6ALT1G

Brand:onsemi

Package:TO-236-3, SC-59, SOT-23-3

Category:TVS - Diodes

Description:TVS DIODE 3VWM 8VC SOT23-3

Price:$0.32

Availability:2,953

RFQ

Datasheet

: PESD3V3L1UL,315

Brand:Nexperia USA Inc.

Package:SOD-882

Category:TVS - Diodes

Description:TVS DIODE 3.3VWM 11VC DFN1006-2

Price:$0.38

Availability:3,517

RFQ

Datasheet

: VESD05A1-02V-G3-08

Brand:Vishay General Semiconductor - Diodes Division

Package:SC-79, SOD-523

Category:TVS - Diodes

Description:TVS DIODE 5VWM 12VC SOD523

Price:$0.34

Availability:3,934

RFQ

Datasheet
