Results:

: SMCJ40A

Brand:Taiwan Semiconductor Corporation

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 40VWM 64.5VC SMC

Price:$1.01

Availability:5,149

RFQ

Datasheet

: SMC5K24A-M3/I

Brand:Vishay General Semiconductor - Diodes Division

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 24VWM 38.9VC DO214AB

Price:$0.91

Availability:3,672

RFQ

Datasheet

: SMC5K33A-M3/I

Brand:Vishay General Semiconductor - Diodes Division

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 33VWM 53.3VC DO214AB

Price:$0.91

Availability:7,000

RFQ

Datasheet

: SMC5K40A-M3/I

Brand:Vishay General Semiconductor - Diodes Division

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 40VWM 64.5VC DO214AB

Price:$0.91

Availability:3,515

RFQ

Datasheet

: TPSMD22A

Brand:Littelfuse Inc.

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 22VWM 35.5VC DO214AB

Price:$1.02

Availability:15,035

RFQ

Datasheet

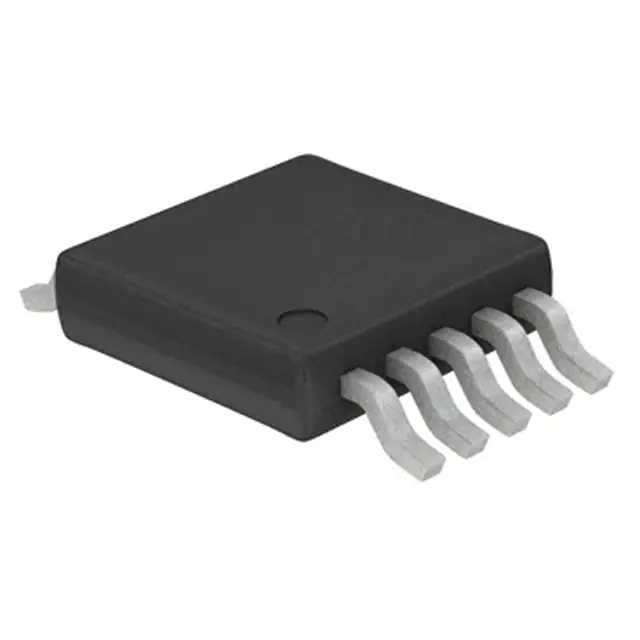

: SP4045-04ATG

Brand:Littelfuse Inc.

Package:10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Category:TVS - Diodes

Description:TVS DIODE 3.3VWM 7VC 10MSOP

Price:$1.02

Availability:10,168

RFQ

Datasheet

: TPSMD20A

Brand:Littelfuse Inc.

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 20VWM 32.4VC DO214AB

Price:$1.02

Availability:9,452

RFQ

Datasheet

: TPSMD78A

Brand:Littelfuse Inc.

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 78VWM 126VC DO214AB

Price:$1.02

Availability:5,698

RFQ

Datasheet

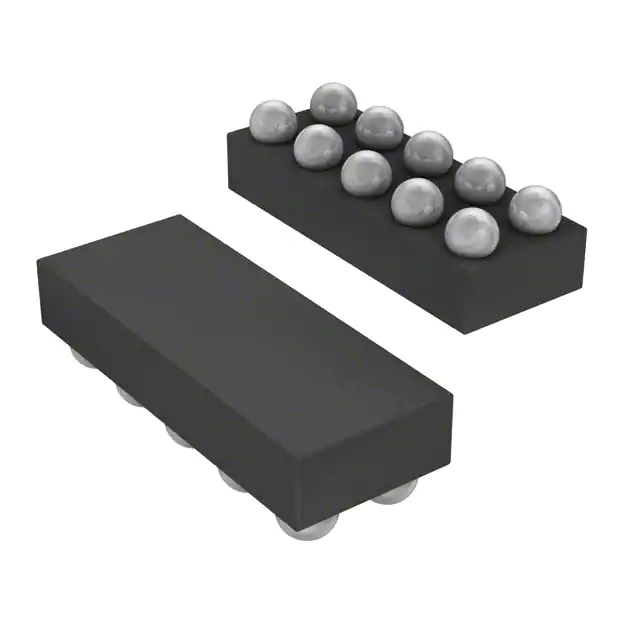

: CM1230-08CP

Brand:onsemi

Package:10-WFBGA, WLCSP

Category:TVS - Diodes

Description:TVS DIODE 3.3VWM 9.8VC 10WLCSP

Price:$1.02

Availability:65,878

RFQ

Datasheet

: SMCJ15CA

Brand:Taiwan Semiconductor Corporation

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 15VWM 24.4VC SMC

Price:$1.04

Availability:5,032

RFQ

Datasheet

: SMCJ45CA

Brand:Taiwan Semiconductor Corporation

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 45VWM 72.7VC SMC

Price:$1.04

Availability:5,827

RFQ

Datasheet

: TPC36CAHM3/H

Brand:Vishay General Semiconductor - Diodes Division

Package:TO-277, 3-PowerDFN

Category:TVS - Diodes

Description:TVS DIODE 30.8VWM 49.9VC TO277A

Price:$0.94

Availability:16,550

RFQ

Datasheet

: TPC27CAHM3/H

Brand:Vishay General Semiconductor - Diodes Division

Package:TO-277, 3-PowerDFN

Category:TVS - Diodes

Description:TVS DIODE 23.1VWM 37.5VC TO277A

Price:$0.94

Availability:3,000

RFQ

Datasheet

: 1.5KE30A

Brand:STMicroelectronics

Package:DO-201AA, DO-27, Axial

Category:TVS - Diodes

Description:TVS DIODE 25.6VWM 53.5VC DO201

Price:$0.84

Availability:1,466

RFQ

Datasheet

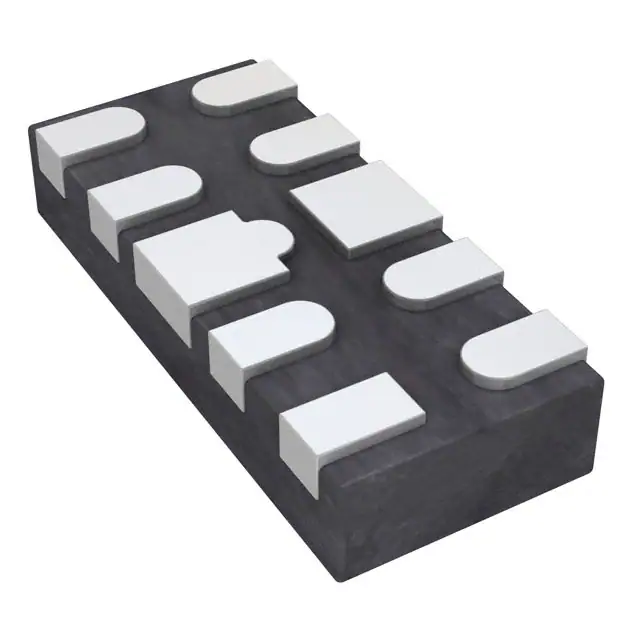

: CDDFN10-2574N

Brand:Bourns Inc.

Package:10-UDFN Exposed Pad

Category:TVS - Diodes

Description:TVS DIODE 2.5VWM 11VC 10DFN

Price:$1.06

Availability:23,462

RFQ

Datasheet

: SMLJ15A

Brand:Bourns Inc.

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 15VWM 24.4VC SMC

Price:$1.06

Availability:10,413

RFQ

Datasheet

: SMLJ28A

Brand:Bourns Inc.

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 28VWM 45.4VC SMC

Price:$1.06

Availability:7,166

RFQ

Datasheet

: SM15T36A

Brand:STMicroelectronics

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 30.8VWM 64.3VC SMC

Price:$0.94

Availability:9,970

RFQ

Datasheet

: SM15T27A

Brand:STMicroelectronics

Package:DO-214AB, SMC

Category:TVS - Diodes

Description:TVS DIODE 23.1VWM 48.3VC SMC

Price:$0.95

Availability:4,975

RFQ

Datasheet

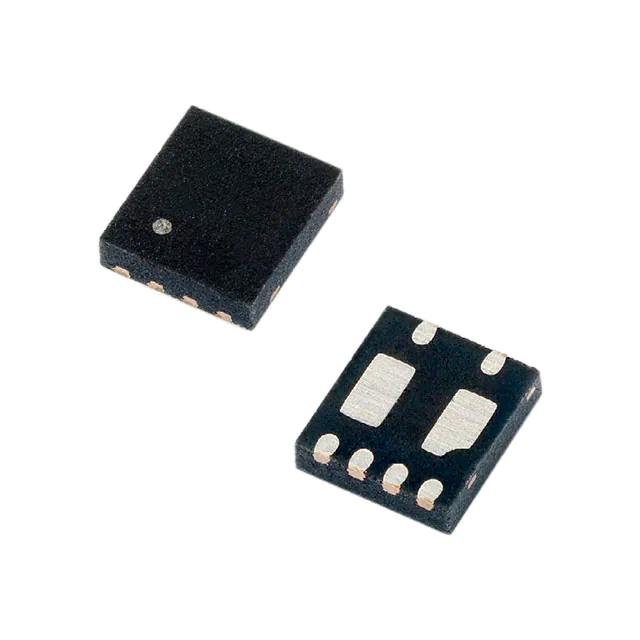

: SP1255PUTG

Brand:Littelfuse Inc.

Package:6-UFDFN Exposed Pad

Category:TVS - Diodes

Description:TVS DIODE 4VWM 8.5VC 6UDFN

Price:$1.09

Availability:10,770

RFQ

Datasheet
