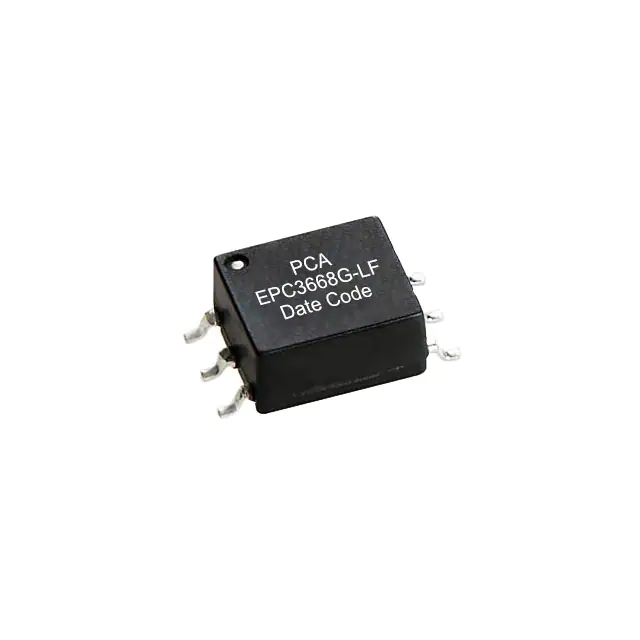

: EPC3668G-LF

Brand:PCA Electronics, Inc.

Package:

Category:Switching Converter, SMPS Transformers

Description:PUSH-PULL XFM. 0.75W

Price:$1.90

Availability:3,656

RFQ

Datasheet

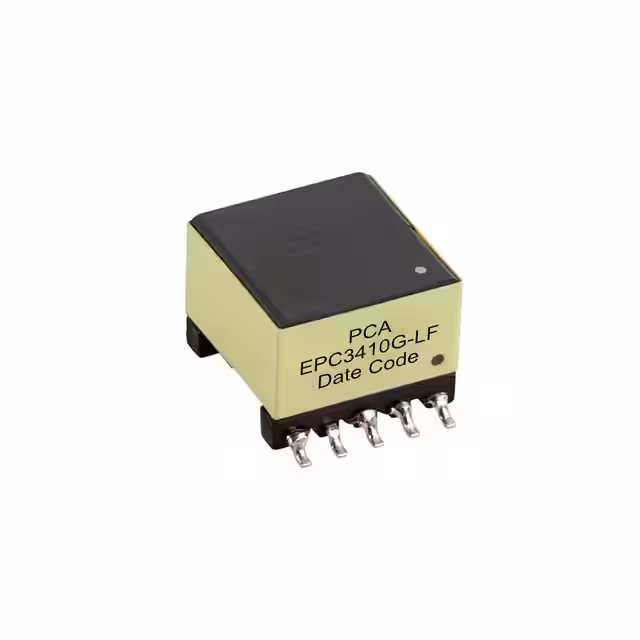

: EPC3410G-LF

Brand:PCA Electronics, Inc.

Package:

Category:Switching Converter, SMPS Transformers

Description:POE FLYBACK XFM 12V, 25W

Price:$2.80

Availability:180

RFQ

Datasheet

: EPC3409G-LF

Brand:PCA Electronics, Inc.

Package:

Category:Switching Converter, SMPS Transformers

Description:POE FLYBACK XFM 5V, 25W

Price:$2.98

Availability:165

RFQ

Datasheet

: EPC3408G-LF

Brand:PCA Electronics, Inc.

Package:

Category:Switching Converter, SMPS Transformers

Description:POE FLYBACK XFM 3.3V, 25W

Price:$3.22

Availability:195

RFQ

Datasheet

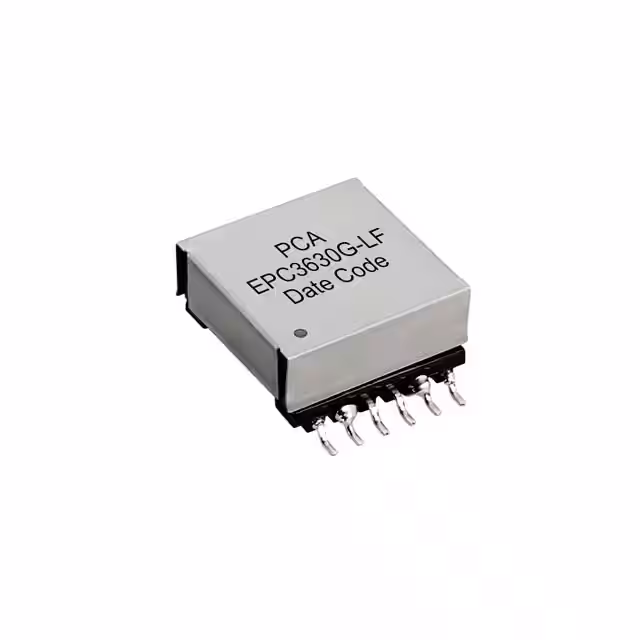

: EPC3630G-LF

Brand:PCA Electronics, Inc.

Package:

Category:Switching Converter, SMPS Transformers

Description:POE FLYBACK XFM 24V, 84W

Price:$12.67

Availability:238

RFQ

Datasheet

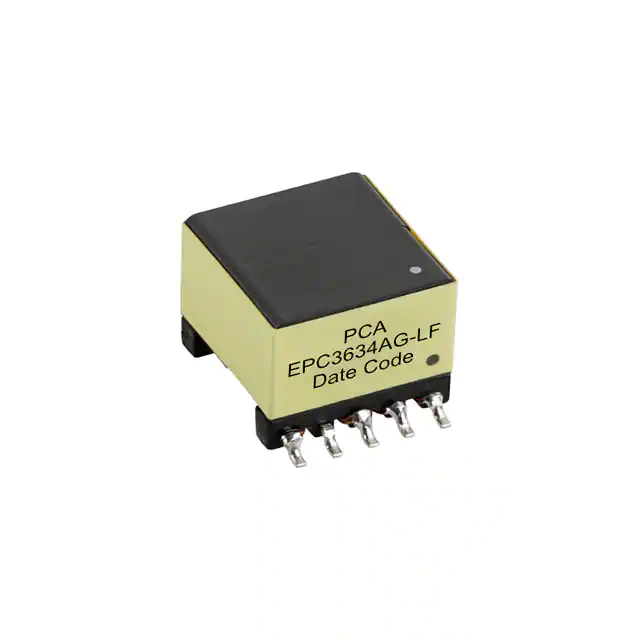

: EPC3634AG-LF

Brand:PCA Electronics, Inc.

Package:

Category:Switching Converter, SMPS Transformers

Description:POE FLYBACK XFM 12V, 36W

Price:$0.00

Availability:3,321

RFQ

Datasheet

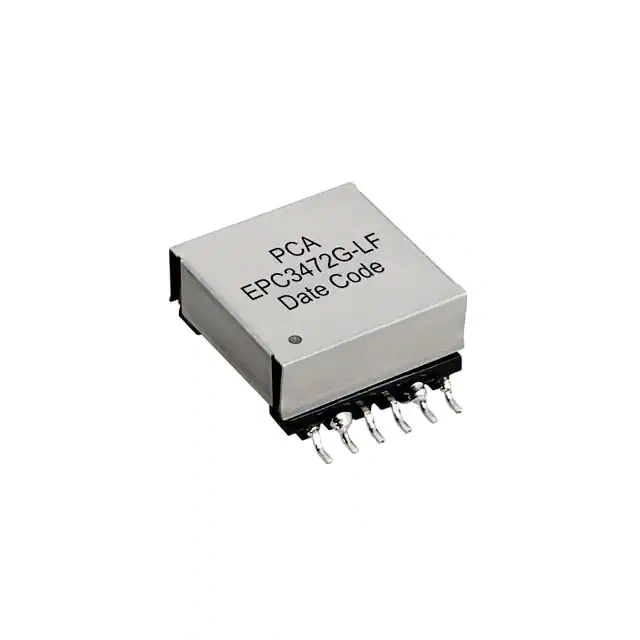

: EPC3472G-LF

Brand:PCA Electronics, Inc.

Package:

Category:Switching Converter, SMPS Transformers

Description:POE FLYBACK XFM 5V, 25W

Price:$0.00

Availability:2,426

RFQ

Datasheet

: EPC3577G-LF

Brand:PCA Electronics, Inc.

Package:

Category:Switching Converter, SMPS Transformers

Description:POE FORWARD XFM 12V, 90W

Price:$0.00

Availability:3,305

RFQ

Datasheet
